BYV28-600-TR
Fast / Ultrafast Diode, 600 V, 3.5 A, Single, 1.35 V, 210 ns, 90 A
10,777 In Stock
Need more?
10,777 Delivery in 3-4 Business Days(UK stock)
Packaging Options
| Packaging Type | Quantity | Unit Price: | Total |
|---|---|---|---|
| Cut Tape | 1 | RM17.070 | RM17.07 |
| Total Price | RM17.07 | ||
Cut Tape & Re-Reel
| Quantity | Price |
|---|---|
| 1+ | RM17.070 |
| 10+ | RM8.610 |
| 100+ | RM7.800 |
| 500+ | RM6.320 |
| 1000+ | RM5.910 |
| 5000+ | RM5.800 |
Line Note
Added to your Order Confirmation, Invoice, and Dispatch note for this order only.
Product Information
ManufacturerVISHAY
Manufacturer Part NoBYV28-600-TRCopy
Manufacturer Standard Lead Time20 weeks
Order Code
Re-Reel1469374RL
Cut Tape1469374
Product RangeBYV28
Technical Datasheet
Repetitive Peak Reverse Voltage600V
Average Forward Current3.5A
Diode ConfigurationSingle
Forward Voltage Max1.35V
Reverse Recovery Time210ns
Forward Surge Current90A
Operating Temperature Max175°C
Diode Case StyleSOD-64
No. of Pins2 Pin
Product RangeBYV28
QualificationAEC-Q101
SVHCNo SVHC (04-Feb-2026)
Product Overview

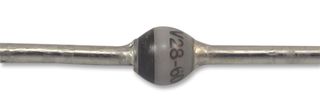

The BYV28-600-TR is an Ultrafast Avalanche Sinterglass Diode with plated axial leads terminals. The glass passivated diode features hermetically sealed axial-leaded glass envelope, ultrafast soft recovery switching and solderable terminals as per MIL-STD-750, method 2026 standard. Colour band denotes cathode end polarity.
- Low reverse current
- 600V at 100μA Reverse breakdown voltage
- 6.2V Forward recovery voltage
Applications
Consumer Electronics, Power Management, Automotive
Technical Specifications
Repetitive Peak Reverse Voltage
600V
Diode Configuration
Single
Reverse Recovery Time
210ns
Operating Temperature Max
175°C
No. of Pins
2 Pin
Qualification
AEC-Q101
Average Forward Current
3.5A
Forward Voltage Max
1.35V
Forward Surge Current
90A
Diode Case Style
SOD-64
Product Range
BYV28
SVHC
No SVHC (04-Feb-2026)
Technical Docs (1)
Legislation and Environmental
Country of Origin:
Country in which last significant manufacturing process was carried outCountry of Origin:Hungary
Country in which last significant manufacturing process was carried out
Country in which last significant manufacturing process was carried outCountry of Origin:Hungary
Country in which last significant manufacturing process was carried out
Tariff No:85411000
US ECCN:EAR99
EU ECCN:NLR
RoHS Compliant:Yes
RoHS
RoHS Phthalates Compliant:Yes
RoHS
SVHC:No SVHC (04-Feb-2026)
Download Product Compliance Certificate
Product Compliance Certificate
Weight (kg):.000981
