| Manufacturer | VISHAY |
|---|---|
| Manufacturer Part No | IHD3EB104LCopy |
| Manufacturer Standard Lead Time | 13 weeks |
| Order Code | 1704136 |
| Product Range | IHD Series |
| Your Part Number | |
| Technical Datasheet |
Notify me when back in stock
| Quantity | Price |
|---|---|
| 190+ | RM11.600 |
Product Information
| Manufacturer | VISHAY |
|---|---|
| Manufacturer Part No | IHD3EB104LCopy |
| Manufacturer Standard Lead Time | 13 weeks |
| Order Code | 1704136 |
| Product Range | IHD Series |
| Technical Datasheet | |
| Product Range | IHD Series |
| Inductance | 100mH |
| DC Current Rating | 70mA |
| DC Resistance Max | 76ohm |
| Inductance Tolerance | ± 15% |
| SVHC | No SVHC (04-Feb-2026) |
Product Overview

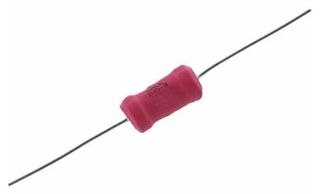

The IHD3EB104L is an axial leaded Filter Inductor with ferrite core. This high current inductor features solid soft copper wire, 20AWG tinned copper lead terminals and polyolefin tubing encapsulation with flame-retardant UL type VW-1 per MIL-I-23053/5, class 3 requirements. High saturation bobbin of the inductor allows high inductance with low DC resistance and high resistivity core offers very high parallel resistance, resulting in maximum coil performance. The inductance measured at 1V with zero DC current. Supports 1kHz frequency and ±15% inductance tolerance. The inductance measured at 1V with zero DC current.
- Low DC resistance
- Protected by polyolefin tubing
- Pre-tinned leads
- 20 Sleeveless models
Applications
Power Management
Technical Specifications
| Product Range | IHD Series |
|---|---|
| DC Current Rating | 70mA |
| Inductance Tolerance | ± 15% |
| Inductance | 100mH |
|---|---|
| DC Resistance Max | 76ohm |
| SVHC | No SVHC (04-Feb-2026) |
Technical Docs (2)
Legislation and Environmental
| Country of Origin: Country in which last significant manufacturing process was carried outCountry of Origin: | Mexico Country in which last significant manufacturing process was carried out |
|---|---|
| Tariff No: | 85045000 |
| US ECCN: | EAR99 |
| EU ECCN: | NLR |
| RoHS Compliant: | Yes RoHS |
| RoHS Phthalates Compliant: | Yes RoHS |
| SVHC: | No SVHC (04-Feb-2026) |
| Download Product Compliance Certificate | Product Compliance Certificate |
| Weight (kg): | .005 |
