IWTX4646DCEB240JF1
Charging Coil, IWTX Series, 24 µH, ± 5%, 0.075 ohm, 1 Coil, 2 Layers

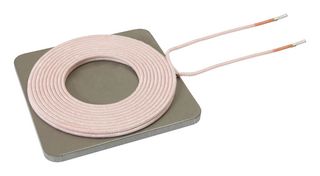

Image is for illustrative purposes only. Please refer to product description.
ManufacturerVISHAY
Manufacturer Part NoIWTX4646DCEB240JF1
Order Code3364903
Product RangeIWTX Series
Technical Datasheet
946 In Stock
Need more?
946 Delivery in 3-4 Business Days(UK stock)
| Quantity | Price |
|---|---|
| 1+ | RM32.330 |
| 10+ | RM26.330 |
| 25+ | RM23.010 |
Price for:Each
Minimum: 1
Multiple: 1
RM32.33
Enter Your Part No/Line Note
Added to your Order Confirmation, Invoice, and Dispatch note for this order only.
This number will be added to the Order Confirmation, Invoice, Dispatch note, Web confirmation Email and Product Label.
Product Information
ManufacturerVISHAY
Manufacturer Part NoIWTX4646DCEB240JF1
Order Code3364903
Product RangeIWTX Series
Technical Datasheet
Product RangeIWTX Series
Inductance Tolerance± 5%
No. of Coils1 Coil
No. of Layers2 Layers
Self Resonant Frequency-
Quality Factor185@200kHz
AC Current Rating-
Inductor MountingBoard Mount
SVHCNo SVHC (07-Nov-2024)
Technical Specifications
Product Range
IWTX Series
No. of Coils
1 Coil
Self Resonant Frequency
-
AC Current Rating
-
SVHC
No SVHC (07-Nov-2024)
Inductance Tolerance
± 5%
No. of Layers
2 Layers
Quality Factor
185@200kHz
Inductor Mounting
Board Mount
Technical Docs (1)
Legislation and Environmental
Country of Origin:
Country in which last significant manufacturing process was carried outCountry of Origin:China
Country in which last significant manufacturing process was carried out
Country in which last significant manufacturing process was carried outCountry of Origin:China
Country in which last significant manufacturing process was carried out
Tariff No:85045000
US ECCN:EAR99
EU ECCN:NLR
RoHS Compliant:Yes
RoHS
RoHS Phthalates Compliant:Yes
RoHS
SVHC:No SVHC (07-Nov-2024)
Download Product Compliance Certificate
Product Compliance Certificate
Weight (kg):.0355
