Product Information
ManufacturerVISHAY
Manufacturer Part NoNTCLE300E3302SB
Order Code1888077
Product RangeNTCS
Technical Datasheet
Thermistor TypeNTC
Resistance (25°C)3kohm
Resistance Tolerance (25°C)± 2.18%
Product RangeNTCS
NTC MountingThrough Hole
B-Constant3977K
Thermistor TerminalsWire Leaded
B-Constant Tolerance± 0.75%
NTC Case Size-
Thermal Time Constant (in Air)-
Probe Material-
Probe Diameter-
Lead Length30mm
Operating Temperature Min-40°C
Operating Temperature Max125°C
QualificationAEC-Q200
Automotive Qualification StandardAEC-Q200
SVHCNo SVHC (16-Jan-2020)
Product Overview

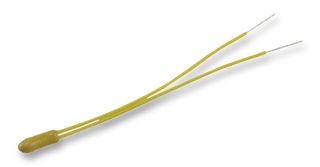

The NTCLE300E3xxxSB series from Vishay are radial leaded NTC thermistors. These NTC thermistors consist of a mini-chip soldered between two insulated (LE300) or non-insulated (LE201) nickel leads and coated with a solid ochre epoxy lacquer. Typical applications include temperature measurement and sensing and control applications.
- Accuracy of 0.5°C between 0°C and 50°C
- Small diameter
- High stability over a long life
- Long and flexible leads for special mounting or assembly requirements
- 3Kohm, 5Kohm and 10Kohm resistance values at 25°C available
- Beta value (B25/85value) is 3977K
- Operating temperature range from -40°C to 125°C
- Maximum power dissipation of 100mW
Applications
Sensing & Instrumentation, Industrial, Consumer Electronics, Portable Devices, Automotive
Technical Specifications
Thermistor Type
NTC
Resistance Tolerance (25°C)
± 2.18%
NTC Mounting
Through Hole
Thermistor Terminals
Wire Leaded
NTC Case Size
-
Probe Material
-
Lead Length
30mm
Operating Temperature Max
125°C
Automotive Qualification Standard
AEC-Q200
Resistance (25°C)
3kohm
Product Range
NTCS
B-Constant
3977K
B-Constant Tolerance
± 0.75%
Thermal Time Constant (in Air)
-
Probe Diameter
-
Operating Temperature Min
-40°C
Qualification
AEC-Q200
SVHC
No SVHC (16-Jan-2020)
Legislation and Environmental
Country of Origin:
Country in which last significant manufacturing process was carried outCountry of Origin:China
Country in which last significant manufacturing process was carried out
Country in which last significant manufacturing process was carried outCountry of Origin:China
Country in which last significant manufacturing process was carried out
Tariff No:85332100
US ECCN:EAR99
EU ECCN:NLR
RoHS Compliant:Yes
RoHS
RoHS Phthalates Compliant:Yes
RoHS
SVHC:No SVHC (16-Jan-2020)
Download Product Compliance Certificate
Product Compliance Certificate
Weight (kg):.001
