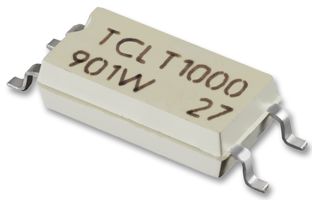

Image is for illustrative purposes only. Please refer to product description.

| Manufacturer | VISHAY |
|---|---|
| Manufacturer Part No | TCLT1003Copy |
| Manufacturer Standard Lead Time | 47 weeks |
| Order Code | 8310700 |
| Your Part Number | |
| Technical Datasheet |
436 In Stock
15,000 more incoming. You can reserve stock now
436 Delivery in 3-4 Business Days(UK stock)
| Quantity | Price |
|---|---|
| 1+ | RM4.260 |
| 10+ | RM2.940 |
| 25+ | RM2.680 |
| 50+ | RM2.400 |
| 100+ | RM2.140 |
| 500+ | RM1.750 |
Price for:Each (Supplied on Cut Tape)
Minimum: 1
Multiple: 1
RM4.26
Line Note
Added to your Order Confirmation, Invoice, and Dispatch note for this order only.
Product Information
| Manufacturer | VISHAY |
|---|---|
| Manufacturer Part No | TCLT1003Copy |
| Manufacturer Standard Lead Time | 47 weeks |
| Order Code | 8310700 |
| Technical Datasheet | |
| No. of Channels | 1 Channel |
| Optocoupler Case Style | SOP |
| No. of Pins | 4Pins |
| Forward Current If Max | 60mA |
| Isolation Voltage | 5kV |
| CTR Min | 100% |
| Collector Emitter Voltage V(br)ceo | 70V |
| Product Range | - |
| SVHC | No SVHC (07-Nov-2024) |
Product Overview
The TCLT1003 is a Phototransistor Output Optocoupler consists of a phototransistor optically coupled to a gallium arsenide infrared-emitting diode. It features CTR flexibility and an extra low coupling capacitance.
- Special construction
- DC input with transistor output
- Extra low coupling capacitance
- DC input with transistor output
Applications
Power Management, Computers & Computer Peripherals, Communications & Networking
Technical Specifications
| No. of Channels | 1 Channel |
|---|---|
| No. of Pins | 4Pins |
| Isolation Voltage | 5kV |
| Collector Emitter Voltage V(br)ceo | 70V |
| SVHC | No SVHC (07-Nov-2024) |
| Optocoupler Case Style | SOP |
|---|---|
| Forward Current If Max | 60mA |
| CTR Min | 100% |
| Product Range | - |
Technical Docs (2)
Alternatives for TCLT1003
8 Products Found
Legislation and Environmental
| Country of Origin: Country in which last significant manufacturing process was carried outCountry of Origin: | Malaysia Country in which last significant manufacturing process was carried out |
|---|---|
| Tariff No: | 85414900 |
| US ECCN: | EAR99 |
| EU ECCN: | NLR |
| RoHS Compliant: | Yes RoHS |
| RoHS Phthalates Compliant: | Yes RoHS |
| SVHC: | No SVHC (07-Nov-2024) |
| Download Product Compliance Certificate | Product Compliance Certificate |
| Weight (kg): | .000203 |
