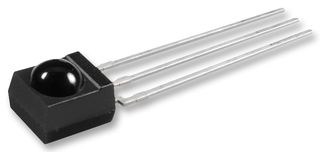

Image is for illustrative purposes only. Please refer to product description.

| Manufacturer | VISHAY |
|---|---|
| Manufacturer Part No | TSOP4840Copy |
| Manufacturer Standard Lead Time | 4 weeks |
| Order Code | 1469636 |
| Your Part Number | |
| Technical Datasheet |
1,617 In Stock
Need more?
1,617 Delivery in 3-4 Business Days(UK stock)
| Quantity | Price |
|---|---|
| 1+ | RM5.480 |
| 10+ | RM3.730 |
| 25+ | RM3.600 |
| 50+ | RM3.470 |
| 100+ | RM3.330 |
| 500+ | RM3.270 |
Price for:Each
Minimum: 1
Multiple: 1
RM5.48
Line Note
Added to your Order Confirmation, Invoice, and Dispatch note for this order only.
Product Information
| Manufacturer | VISHAY |
|---|---|
| Manufacturer Part No | TSOP4840Copy |
| Manufacturer Standard Lead Time | 4 weeks |
| Order Code | 1469636 |
| Technical Datasheet | |
| Carrier Frequency | 40kHz |
| IR Receiver Mounting Style | Side View Through Hole |
| Remote Control Code | RC-5, RC-6, Panasonic, NEC, Sharp, r-step, Thomson RCA |
| Transmission Range | 45m |
| Automatic Gain Control (AGC) Type | AGC2 |
| Detection Threshold / Sensitivity | 0.12mW/m² |
| Directivity | 45° |
| Supply Voltage Max | 5.5V |
| Supply Voltage Min | 2.5V |
| Operating Temperature Min | -25°C |
| Operating Temperature Max | 85°C |
| Supply Current | 950µA |
| Product Range | - |
| SVHC | No SVHC (07-Nov-2024) |
Product Overview
The TSOP4840 is a 40kHz Miniaturized IR Receiver Module for infrared remote control systems. A PIN diode and a preamplifier are assembled on a lead frame. The demodulated output signal can be directly connected to a microprocessor for decoding. The module is optimized to suppress spurious pulses from energy saving lamps like CFLs.
- Low supply current
- Internal filter for PCM frequency
- Improved shielding against EMI
- Improved immunity against ambient light
- Insensitive to supply voltage ripple and noise
Applications
Sensing & Instrumentation
Technical Specifications
| Carrier Frequency | 40kHz |
|---|---|
| Remote Control Code | RC-5, RC-6, Panasonic, NEC, Sharp, r-step, Thomson RCA |
| Automatic Gain Control (AGC) Type | AGC2 |
| Directivity | 45° |
| Supply Voltage Min | 2.5V |
| Operating Temperature Max | 85°C |
| Product Range | - |
| IR Receiver Mounting Style | Side View Through Hole |
|---|---|
| Transmission Range | 45m |
| Detection Threshold / Sensitivity | 0.12mW/m² |
| Supply Voltage Max | 5.5V |
| Operating Temperature Min | -25°C |
| Supply Current | 950µA |
| SVHC | No SVHC (07-Nov-2024) |
Technical Docs (3)
Legislation and Environmental
| Country of Origin: Country in which last significant manufacturing process was carried outCountry of Origin: | Philippines Country in which last significant manufacturing process was carried out |
|---|---|
| Tariff No: | 85411000 |
| US ECCN: | EAR99 |
| EU ECCN: | NLR |
| RoHS Compliant: | Yes RoHS |
| RoHS Phthalates Compliant: | Yes RoHS |
| SVHC: | No SVHC (07-Nov-2024) |
| Download Product Compliance Certificate | Product Compliance Certificate |
| Weight (kg): | .004536 |
