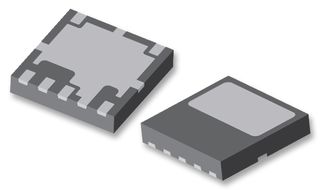

Image is for illustrative purposes only. Please refer to product description.

| Manufacturer | VISHAY |
|---|---|
| Manufacturer Part No | TSSP57038TT1Copy |
| Manufacturer Standard Lead Time | 10 weeks |
| Order Code | 2251443 |
| Your Part Number | |
| Technical Datasheet |
466 In Stock
Need more?
466 Delivery in 3-4 Business Days(UK stock)
| Quantity | Price |
|---|---|
| 1+ | RM6.960 |
| 10+ | RM5.980 |
| 25+ | RM5.740 |
| 50+ | RM5.500 |
| 100+ | RM5.260 |
| 500+ | RM4.670 |
Price for:Each
Minimum: 1
Multiple: 1
RM6.96
Line Note
Added to your Order Confirmation, Invoice, and Dispatch note for this order only.
Product Information
| Manufacturer | VISHAY |
|---|---|
| Manufacturer Part No | TSSP57038TT1Copy |
| Manufacturer Standard Lead Time | 10 weeks |
| Order Code | 2251443 |
| Technical Datasheet | |
| Carrier Frequency | 38kHz |
| IR Receiver Mounting Style | Top View Surface Mount |
| Remote Control Code | - |
| Transmission Range | 25m |
| Automatic Gain Control (AGC) Type | - |
| Detection Threshold / Sensitivity | 0.7mW/m² |
| Directivity | 75° |
| Supply Voltage Max | 5.5V |
| Supply Voltage Min | 2.5V |
| Operating Temperature Min | -25°C |
| Operating Temperature Max | 85°C |
| Supply Current | 700µA |
| Product Range | - |
| SVHC | No SVHC (07-Nov-2024) |
Product Overview
The TSSP57038TT1 is a 38kHz Compact IR Receiver Module for sensor applications. The detection level does not change when ambient light or strong IR signals are applied. It can receive continuous 38kHz signals or 38kHz bursts.
- ±75° Half angle sensitivity
- Low supply current
- Internal filter for PCM frequency
- Improved immunity against ambient light
- Insensitive to supply voltage ripple and noise
Applications
Sensing & Instrumentation, Consumer Electronics
Technical Specifications
| Carrier Frequency | 38kHz |
|---|---|
| Remote Control Code | - |
| Automatic Gain Control (AGC) Type | - |
| Directivity | 75° |
| Supply Voltage Min | 2.5V |
| Operating Temperature Max | 85°C |
| Product Range | - |
| IR Receiver Mounting Style | Top View Surface Mount |
|---|---|
| Transmission Range | 25m |
| Detection Threshold / Sensitivity | 0.7mW/m² |
| Supply Voltage Max | 5.5V |
| Operating Temperature Min | -25°C |
| Supply Current | 700µA |
| SVHC | No SVHC (07-Nov-2024) |
Technical Docs (2)
Associated Products
2 Products Found
Legislation and Environmental
| Country of Origin: Country in which last significant manufacturing process was carried outCountry of Origin: | Philippines Country in which last significant manufacturing process was carried out |
|---|---|
| Tariff No: | 85176990 |
| US ECCN: | EAR99 |
| EU ECCN: | NLR |
| RoHS Compliant: | Yes RoHS |
| RoHS Phthalates Compliant: | Yes RoHS |
| SVHC: | No SVHC (07-Nov-2024) |
| Download Product Compliance Certificate | Product Compliance Certificate |
| Weight (kg): | .000082 |
