VZ484801
Rate Meter, Counter, 4 Digits, 24 to 230 Vac/dc, 48 x 48 mm
| Manufacturer | WACHENDORFF |
|---|---|
| Manufacturer Part No | VZ484801Copy |
| Manufacturer Standard Lead Time | 6 weeks |
| Order Code | 2365009 |
| Your Part Number | |
| Technical Datasheet |
Notify me when back in stock
| Quantity | Price |
|---|---|
| 1+ | RM611.890 |
Product Information
| Manufacturer | WACHENDORFF |
|---|---|
| Manufacturer Part No | VZ484801Copy |
| Manufacturer Standard Lead Time | 6 weeks |
| Order Code | 2365009 |
| Technical Datasheet | |
| Digit Height | 10.2mm |
| Supply Voltage Min | 24V |
| Supply Voltage Max | 230V |
| Panel Cutout Height | 46mm |
| Panel Cutout Width | 46mm |
| Operating Temperature Min | 0°C |
| Operating Temperature Max | 40°C |
Product Overview

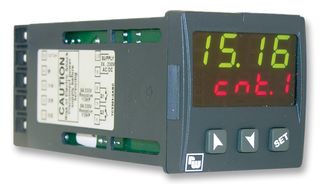

The VZ484801 is a 4-digit Preset counter/Rate meter made of black and robust plastic case housing. The compact preset counter can be used as preset counter and also as a rate meter. Three universal digital inputs are available (NPN/PNP/TTL) can be used with the most common pulse sensors. With the internal quadrature functionality or the external wiring of the user inputs a bidirectional counting could be relayed and displaced. One user input is also analogue in order to allow set-point modification by an external potentiometer. Due to the two different modes and the scaling features, the counter is usable for a lot of different applications. In addition to an excellent cost effectiveness and high quality, the counter offers a rugged, compact housing and a brilliant display.
- Universal AC-to-DC power supply
- Easy programming by front keys or software
- Two relay outputs
- 2-line LED display
- Input frequency up to 100kHz
Applications
Industrial, Clock & Timing, Metering
Technical Specifications
| Digit Height | 10.2mm |
|---|---|
| Supply Voltage Max | 230V |
| Panel Cutout Width | 46mm |
| Operating Temperature Max | 40°C |
| Supply Voltage Min | 24V |
|---|---|
| Panel Cutout Height | 46mm |
| Operating Temperature Min | 0°C |
Technical Docs (1)
Associated Products
1 Product Found
Legislation and Environmental
| Country of Origin: Country in which last significant manufacturing process was carried outCountry of Origin: | Italy Country in which last significant manufacturing process was carried out |
|---|---|
| Tariff No: | 90291000 |
| US ECCN: | EAR99 |
| EU ECCN: | NLR |
| RoHS Compliant: | Yes RoHS |
| RoHS Phthalates Compliant: | Yes RoHS |
| Download Product Compliance Certificate | Product Compliance Certificate |
| Weight (kg): | .35 |
