ZD327401
Counter, Preset, 4 Digits, 24 to 230 Vac/dc, 32 x 74 mm
| Manufacturer | WACHENDORFF |
|---|---|
| Manufacturer Part No | ZD327401Copy |
| Manufacturer Standard Lead Time | 6 weeks |
| Order Code | 2365006 |
| Your Part Number | |
| Technical Datasheet |
Notify me when back in stock
| Quantity | Price |
|---|---|
| 1+ | RM536.010 |
Product Information
| Manufacturer | WACHENDORFF |
|---|---|
| Manufacturer Part No | ZD327401Copy |
| Manufacturer Standard Lead Time | 6 weeks |
| Order Code | 2365006 |
| Technical Datasheet | |
| Digit Height | 10.2mm |
| Supply Voltage Min | 24V |
| Supply Voltage Max | 230V |
| Panel Cutout Height | 28.5mm |
| Panel Cutout Width | 70.5mm |
| Operating Temperature Min | 0°C |
| Operating Temperature Max | 40°C |
Product Overview

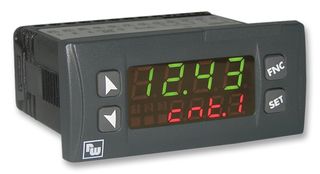

The ZD327401 is a 4-digit Counter/Preset Counter made of black and robust plastic case, PC ABS self-extinguishing housing. The compact small counter can be set in two different modes of single or double counter, all with independent setting. Three universal digital inputs are available (NPN/PNP/contact) can be used for bidirectional encoders reading, UP/DOWN counter function, LOCK/HOLD to lock or hold current visualization. One input is also analogue in order to allow set-point modification by an external potentiometer. Due to the two different modes and the scaling features, the counter is usable for a lot of different applications. In addition to an excellent cost effectiveness and high quality, the counter offers a rugged, compact housing and a brilliant display.
- Universal AC-to-DC power supply
- Easy programming by front keys or software
- Two relay outputs
- 2-line LED display
- Input frequency up to 100kHz
- UL94V-0 Flammability rating
Applications
Industrial, Clock & Timing, Metering
Technical Specifications
| Digit Height | 10.2mm |
|---|---|
| Supply Voltage Max | 230V |
| Panel Cutout Width | 70.5mm |
| Operating Temperature Max | 40°C |
| Supply Voltage Min | 24V |
|---|---|
| Panel Cutout Height | 28.5mm |
| Operating Temperature Min | 0°C |
Technical Docs (1)
Associated Products
1 Product Found
Legislation and Environmental
| Country of Origin: Country in which last significant manufacturing process was carried outCountry of Origin: | Italy Country in which last significant manufacturing process was carried out |
|---|---|
| Tariff No: | 90291000 |
| US ECCN: | EAR99 |
| EU ECCN: | NLR |
| RoHS Compliant: | Yes RoHS |
| RoHS Phthalates Compliant: | Yes RoHS |
| Download Product Compliance Certificate | Product Compliance Certificate |
| Weight (kg): | .18 |
