2606031021000
Data Collection & Monitoring Module, 2FSK, MSK, 500Kbps, 2.4GHz, -102dBm, 2.7V to 3.6V Supply, UART

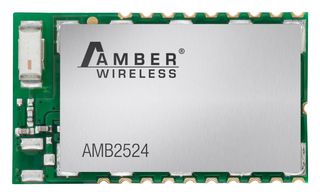

Image is for illustrative purposes only. Please refer to product description.
ManufacturerWURTH ELEKTRONIK
Manufacturer Part No2606031021000
Order Code2917635RL
Also Known AsAMB2524-TR
Your Part Number
Technical Datasheet
Product Information
ManufacturerWURTH ELEKTRONIK
Manufacturer Part No2606031021000
Order Code2917635RL
Also Known AsAMB2524-TR
Technical Datasheet
RF Modulation2FSK, MSK
Data Rate Max500Kbps
Frequency Max2.4GHz
Sensitivity dBm-102dBm
Supply Voltage Min2.7V
Supply Voltage Max3.6V
Transmit Power-
Module InterfaceUART
Supply Current25mA
RF Transceiver ApplicationsData Collection, Monitoring, Remote Control, Sensor Network
Product Range-
SVHCLead (25-Jun-2025)
Product Overview
Thalassa module designed as a radio submodule for wireless communication between devices like controls, remote controls, sensors etc. It offers several addressing modes and relieves the host system of radio-specific tasks such as checksum calculation, address resolution and repetition of unacknowledged telegrams. It can be deployed wherever the wireless exchange of small data packets (up to 128 bytes) between two or more parties is required. A serial interface (UART) whose data rate and format can be adjusted flexibly is available for communicating with the host system.
- Tiny, low-cost OEM radio module
- Embedded microcontroller
- Supports low-power applications
- WOR (wake-on radio)
- Built-in software stack with extensive functions
- Flexible addressing (255 nodes per network)
- Integrated ceramic antenna
- External antenna connection (optional)
- Also available as USB adapter AMB2561 for PC link
Technical Specifications
RF Modulation
2FSK, MSK
Frequency Max
2.4GHz
Supply Voltage Min
2.7V
Transmit Power
-
Supply Current
25mA
Product Range
-
Data Rate Max
500Kbps
Sensitivity dBm
-102dBm
Supply Voltage Max
3.6V
Module Interface
UART
RF Transceiver Applications
Data Collection, Monitoring, Remote Control, Sensor Network
SVHC
Lead (25-Jun-2025)
Technical Docs (2)
Legislation and Environmental
Country of Origin:
Country in which last significant manufacturing process was carried outCountry of Origin:Germany
Country in which last significant manufacturing process was carried out
Country in which last significant manufacturing process was carried outCountry of Origin:Germany
Country in which last significant manufacturing process was carried out
Tariff No:85176200
US ECCN:5A991.g
EU ECCN:NLR
RoHS Compliant:Yes
RoHS
RoHS Phthalates Compliant:Yes
RoHS
SVHC:Lead (25-Jun-2025)
Download Product Compliance Certificate
Product Compliance Certificate
Weight (kg):.00201
