65300113722DEC
Contact, Socket, Crimp, 28 AWG, 30 AWG

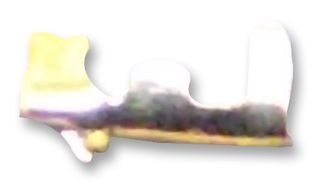

Image is for illustrative purposes only. Please refer to product description.
| Manufacturer | WURTH ELEKTRONIK |
|---|---|
| Manufacturer Part No | 65300113722DECCopy |
| Manufacturer Standard Lead Time | 17 weeks |
| Order Code | 1841429 |
| Your Part Number | |
| Technical Datasheet |
2,600 In Stock
1,900 more incoming. You can reserve stock now
2,600 Delivery in 3-4 Business Days(UK stock)
| Quantity | Price |
|---|---|
| 100+ | RM0.544 |
| 500+ | RM0.486 |
| 1000+ | RM0.477 |
| 2500+ | RM0.467 |
| 5000+ | RM0.457 |
| 10000+ | RM0.448 |
Price for:Each
Minimum: 100
Multiple: 100
RM54.40
Line Note
Added to your Order Confirmation, Invoice, and Dispatch note for this order only.
Product Information
| Manufacturer | WURTH ELEKTRONIK |
|---|---|
| Manufacturer Part No | 65300113722DECCopy |
| Manufacturer Standard Lead Time | 17 weeks |
| Order Code | 1841429 |
| Technical Datasheet | |
| Product Range | - |
| Contact Gender | Socket |
| Contact Termination Type | Crimp |
| For Use With | - |
| Wire Size AWG Max | 28AWG |
| Wire Size AWG Min | 30AWG |
| Current Rating | 1A |
| Contact Material | Copper |
| Contact Plating | Tin Plated Contacts |
| SVHC | No SVHC (04-Feb-2026) |
Product Overview
The 65300113722DEC is a stamped female Crimp Contact with copper alloy body, tin plating for use with a wire size range of 30 to 28AWG. Can be used with WR- WTB.
- 50VAC Working voltage
- 20mΩ Maximum contact resistance
- 1.25mm Pitch
- -25 to +85°C Operating temperature
- 25 Mating cycles quality class
Applications
Industrial
Technical Specifications
| Product Range | - |
|---|---|
| Contact Termination Type | Crimp |
| Wire Size AWG Max | 28AWG |
| Current Rating | 1A |
| Contact Plating | Tin Plated Contacts |
| Contact Gender | Socket |
|---|---|
| For Use With | - |
| Wire Size AWG Min | 30AWG |
| Contact Material | Copper |
| SVHC | No SVHC (04-Feb-2026) |
Technical Docs (2)
Associated Products
5 Products Found
Legislation and Environmental
| Country of Origin: Country in which last significant manufacturing process was carried outCountry of Origin: | Taiwan Country in which last significant manufacturing process was carried out |
|---|---|
| Tariff No: | 85369010 |
| US ECCN: | EAR99 |
| EU ECCN: | NLR |
| RoHS Compliant: | Yes RoHS |
| RoHS Phthalates Compliant: | Yes RoHS |
| SVHC: | No SVHC (04-Feb-2026) |
| Download Product Compliance Certificate | Product Compliance Certificate |
| Weight (kg): | .000046 |
