830108213209

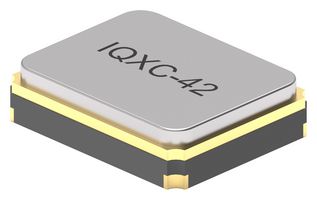

Crystal, IQXC-42 Series, 40 MHz, 10 ppm, 15 ppm, 8 pF
Image is for illustrative purposes only. Please refer to product description.
ManufacturerWURTH ELEKTRONIK
Manufacturer Part No830108213209Copy
Manufacturer Standard Lead Time10 weeks
Order Code
Re-Reel4228846RL
Cut Tape4228846
Product RangeIQXC-42 Series
Your Part Number
1,911 In Stock
Need more?
1,911 Delivery in 3-4 Business Days(UK stock)
Packaging Options
| Packaging Type | Quantity | Unit Price: | Total |
|---|---|---|---|
| Cut Tape | 1 | RM2.440 | RM2.44 |
| Total Price | RM2.44 | ||
Cut Tape & Re-Reel
| Quantity | Price |
|---|---|
| 1+ | RM2.440 |
| 10+ | RM2.220 |
| 25+ | RM2.170 |
| 50+ | RM2.120 |
| 100+ | RM2.040 |
| 500+ | RM2.020 |
Line Note
Added to your Order Confirmation, Invoice, and Dispatch note for this order only.
Product Information
ManufacturerWURTH ELEKTRONIK
Manufacturer Part No830108213209Copy
Manufacturer Standard Lead Time10 weeks
Order Code
Re-Reel4228846RL
Cut Tape4228846
Product RangeIQXC-42 Series
Technical Datasheet
Frequency Nom40MHz
Product RangeIQXC-42 Series
Crystal Frequency40MHz
Frequency Tolerance + / -10ppm
Frequency Stability + / -15ppm
Load Capacitance8pF
Crystal Case / PackageSMD, 2mm x 1.6mm
Operating Temperature Min-40°C
Operating Temperature Max85°C
SVHCNo SVHC (04-Feb-2026)
Technical Specifications
Frequency Nom
40MHz
Crystal Frequency
40MHz
Frequency Stability + / -
15ppm
Crystal Case / Package
SMD, 2mm x 1.6mm
Operating Temperature Max
85°C
Product Range
IQXC-42 Series
Frequency Tolerance + / -
10ppm
Load Capacitance
8pF
Operating Temperature Min
-40°C
SVHC
No SVHC (04-Feb-2026)
Technical Docs (2)
Legislation and Environmental
Country of Origin:
Country in which last significant manufacturing process was carried outCountry of Origin:China
Country in which last significant manufacturing process was carried out
Country in which last significant manufacturing process was carried outCountry of Origin:China
Country in which last significant manufacturing process was carried out
Tariff No:85416000
US ECCN:EAR99
EU ECCN:NLR
RoHS Compliant:Yes
RoHS
RoHS Phthalates Compliant:Yes
RoHS
SVHC:No SVHC (04-Feb-2026)
Download Product Compliance Certificate
Product Compliance Certificate
Weight (kg):.0001
