QHL750300S24

Isolated Board Mount DC/DC Converter, ITE, 1 Output, 750 W, 24 V, 31.2 A

XP POWER QHL750300S24

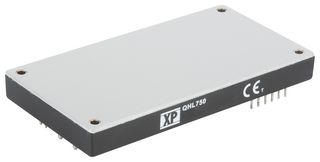

Image is for illustrative purposes only. Please refer to product description.

Manufacturer:
XP POWER XP POWER
Manufacturer Part No:
QHL750300S24
Order Code:
2846402
Product Range
QHL Series
Technical Datasheet:
QHL750300S24   Datasheet
See all Technical Docs

Product Range Selector (QHL Series)

See all from this product range

Product Information

Want to see similar products? Simply select your required attributes below and hit the button ×


:
ITE

:
1 Output

:
750W

:
24V

:
31.2A

:
-

:
-

:
-

:
-

:
QHL Series

:
200V

:
425V

:
Fixed, Adjustable

:
Full Brick

:
Through Hole

:
61mm

:
12.7mm

:
116.8mm

Find similar products Choose and modify the attributes above to find similar products.

Technical Docs (2)

Product Overview

The XP Power QHL series of brick type DC/DC converters include output power ranges of 600 or 750 Watts and are designed for 300VDC nominal input applications. These two new series are packaged in an industry standard full brick format measuring 4.6 x 2.4 x 0.5" (116.8 x 61 x 12.7mm). Both ranges offer single outputs, with high efficiency between 89 and 92% and carry approvals for ITE/industrial applications. The input voltage range for the QHL600 is 180-425 VDC and 200-425 VDC for the QHL750 which is ideal for AC input applications with PFC, baseplate cooled solutions and high voltage battery applications such as electric vehicles. Single output models with 12, 24 or 48 VDC are available with the QHL600 range while the QHL750 series offers six models with 12, 15, 24, 28, 36 or 48 VDC options with an additional 10 VDC / 20 mA output. The output voltage for both series can be adjusted from 60% to 110% via an external trim pin and resistor.
  • 300VDC Nominal Input
  • Industry Standard Full Brick Package
  • High Isolation
  • Wide Operating Temperature
  • High Efficiency
  • See Technical Note for information about XP Power's plans for the UKCA Marking

Available for back order

More stock available to supplier lead times which is approximately 5/24/21

Notify me when back in stock

RM1,485.36

Pricing is unavailable. Please contact customer services.

Price for:
Each
Multiple: 1 Minimum: 1
Quantity Price Your Price


1+ RM1,485.36
Promotional price
Contract Price
Web only price
Web only contract price

5+ RM1,440.80
