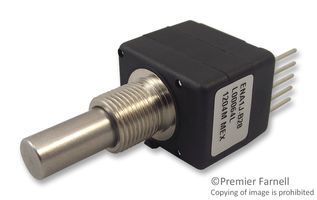

BOURNS ENA1J-B28-L00064L

Rotary Encoder, Optical, Incremental, 64 PPR, 0 Detents, Vertical, Without Push Switch

BOURNS ENA1J-B28-L00064L
×

Image is for illustrative purposes only. Please refer to product description.

Manufacturer:
BOURNS BOURNS
Manufacturer Part No:
ENA1J-B28-L00064L
Order Code:
1607977
  • Enter your custom part number in the textbox above
  • Maximum Part Numbers added.
    Delete older entries to add more.

Part Number Saved

Part Number Saved

ECAD / MCAD
Supply Frame Models Link
See all Technical Docs

Product Range Selector (EN)

See all from this product range

Product Information

Want to see similar products? Simply select your required attributes below and hit the button ×


:
Optical

:
Incremental

:
64PPR

:
0 Detents

:
Vertical

:
Without Push Switch

:
Quadrature

:
Bushing Mount, Through Hole

:
EN

:
3000rpm

:
2Channels

:
Flatted End

:
22.22mm

:
6.35mm

:
4.75V

:
5.25V

:
-40°C

:
75°C

:
IP40

:
Solder Pin

Find similar products Choose and modify the attributes above to find similar products.

Technical Documents (3)

Product Overview

The ENA1J-B28-L00064L is a Rotary Optical Encoder with axial multi-purpose pin terminals and 2-bit quadrature code, channel A leads channel B by 90° (electrical) switching configuration with clockwise rotation. The rotary optical encoder has Ø1/4-inch plain end shaft and 9:00 position anti-rotation lug position. The self-contained rotary optical encoder is suitable for digital systems where both magnitude and direction of adjustment must be provided. The EN encoder is ideal for use as a digital panel control or as a position sensing device in applications where long life, reliability, high resolution and precise linearity are critical.
  • Square wave signal
  • Small size
  • CMOS and TTL compatible
  • Long life
  • 3/8 (D) x 3/8" (L) Threaded bushing
  • 7/8" Long shaft length
  • 64 cycles per revolution Resolution

Applications

Sensing & Instrumentation

Warnings

Market demand for this product has caused an extension in leadtimes. Delivery dates may fluctuate. Product exempt from discounts.

132 In stock Need more?

85 UK stock available for 3-4 business days delivery
47 US stock available for 4-5 business days delivery

Due to market conditions delivery times are for general guidance only and may be subject to change at short notice
