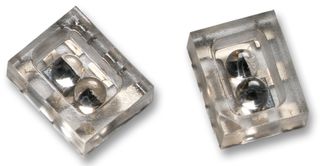

AEDR-8300-1Q2
Rotary Encoder, Reflective, Optical, Incremental, 180 LPI, 0 Detents, Vertical, Without Push Switch
Need more?
| Packaging Type | Quantity | Unit Price: | Total |
|---|---|---|---|
| Cut Tape | 1 | RM43.140 | RM43.14 |
| Total Price | RM43.14 | ||
| Quantity | Price |
|---|---|
| 1+ | RM43.140 |
| 5+ | RM38.910 |
| 10+ | RM34.670 |
| 50+ | RM31.910 |
| 100+ | RM29.320 |
Product Information
Product Overview
The AEDR-8300-1Q2 is a Reflective Optical Encoder for high volume applications. The AEDR-8300 series is the smallest optical encoder technology for motion control purposes. The encoder houses an LED light source and a photo-detecting circuitry. It offers two-channel quadrature digital outputs. Being TTL compatible, the outputs of the AEDR-8300 series can be interfaced directly with most of the signal processing circuitries. Hence the encoder provides great design-in flexibility and easy integration into existing systems.
- Reflective technology
- Two channel quadrature outputs for direction sensing
- TTL compatible output
- -20 to 85°C Absolute operating temperature range
Applications
Computers & Computer Peripherals, Consumer Electronics
Technical Specifications
Optical
180LPI
Vertical
Quadrature
AEDR-8300 Series
180
No Shaft
-
5.5V
85°C
Solder Pin
Incremental
0 Detents
Without Push Switch
Surface Mount
-
2Channels
-
4.5V
-20°C
-
No SVHC (23-Jan-2024)
