VTB-1013BH

Photo Diode, 35° Half Sensitivity, 20pA Dark Current, 580nm, TO-46-2

VTB-1013BH - Photo Diode, 35° Half Sensitivity, 20pA Dark Current, 580nm, TO-46-2

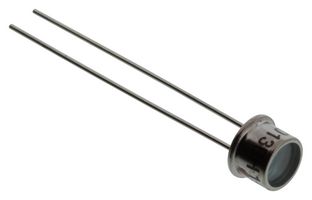

Image is for illustrative purposes only. Please refer to product description.

Manufacturer Part No:
VTB-1013BH
Order Code:
2748725
Product Range
VTB Series
Technical Datasheet:
VTB-1013BH   Datasheet
See all Technical Docs

Product Overview

The VTB-1013BH is a blue enhanced silicon Photodiode designed for spectral response between 330 and 720nm. This series of P on N silicon planar photodiode has been designed for optimum response through the visible part of the spectrum. This photodiode is primarily intended to be used in photovoltaic mode but may be used with a small reverse bias. This has also been designed to exhibit very high shunt resistance, a characteristic which leads to low offsets when used in high gain trans-impedance op-amp circuits. Cathode is common to the case. This diode has very high shunt resistance and has good blue response.
  • UV to visible spectral range
  • Integral IR blocking filter
  • Small active area
  • Very low dark current
  • Very high shunt resistance
  • -40 to 110°C Operating temperature range

Applications

Industrial, Sensing & Instrumentation, Imaging, Video & Vision, Automotive, Metering

Product Information

Want to see similar products? Simply select your required attributes below and hit the button ×


:
2Pins

:
TO-46

:
580nm

:
35°

:
20pA

:
-40°C

:
110°C

:
VTB Series

:
-

:
-
Find similar products Choose and modify the attributes above to find similar products.
