OP950
Photodiode, 1 nA, 935 nm, Radial Leaded-2

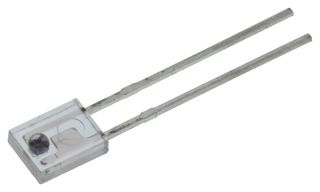

Image is for illustrative purposes only. Please refer to product description.
| Manufacturer | TT ELECTRONICS / OPTEK TECHNOLOGY |
|---|---|
| Manufacturer Part No | OP950Copy |
| Order Code | 1497895 |
| Your Part Number | |
| Technical Datasheet |
No Longer Manufactured
Product Information
| Manufacturer | TT ELECTRONICS / OPTEK TECHNOLOGY |
|---|---|
| Manufacturer Part No | OP950Copy |
| Order Code | 1497895 |
| Technical Datasheet | |
| No. of Pins | 2Pins |
| Diode Case Style | Radial Leaded |
| Wavelength of Peak Sensitivity | 935nm |
| Angle of Half Sensitivity ± | - |
| Dark Current | 1000pA |
| Operating Temperature Min | -40°C |
| Operating Temperature Max | 100°C |
| Product Range | - |
| Automotive Qualification Standard | - |
| MSL | - |
| SVHC | No SVHC (27-Jun-2024) |
Product Overview
Each <bold>OP950</bold> device consists of a PIN silicon photodiode molded in an epoxy packge that allows spectral response from visible to infrared light wavelengths. The side-looking package is designed for easy PCBoard mounting and space-limited applications. The OP950 has a 95° wide receiving angle that provides relatively even reception over a large area and is mechanically and spectrally matched to OPTEK’s GaAs and GaAiAs series of infrared emiƫng diodes.
- Epoxy package
- Linear response vs. irradiance
- Fast switching time
- Choice of wide or extra wide receiving angle
- Side-looker package
- Small package style ideal for space-limited applications
Applications
Industrial Automation Control, Safety
Technical Specifications
| No. of Pins | 2Pins |
|---|---|
| Wavelength of Peak Sensitivity | 935nm |
| Dark Current | 1000pA |
| Operating Temperature Max | 100°C |
| Automotive Qualification Standard | - |
| SVHC | No SVHC (27-Jun-2024) |
| Diode Case Style | Radial Leaded |
|---|---|
| Angle of Half Sensitivity ± | - |
| Operating Temperature Min | -40°C |
| Product Range | - |
| MSL | - |
Technical Docs (3)
Legislation and Environmental
| Country of Origin: Country in which last significant manufacturing process was carried outCountry of Origin: | Mexico Country in which last significant manufacturing process was carried out |
|---|---|
| Tariff No: | 85414900 |
| US ECCN: | EAR99 |
| EU ECCN: | NLR |
| RoHS Compliant: | Yes RoHS |
| RoHS Phthalates Compliant: | Yes RoHS |
| SVHC: | No SVHC (27-Jun-2024) |
| Download Product Compliance Certificate | Product Compliance Certificate |
| Weight (kg): | .000163 |
